Hopper Dredger vs. Cutter Suction Dredger: Which One Fits Your Project Needs?

Selecting the right dredging equipment is one of the most critical decisions in any marine, port, or reclamation project. Hopper dredgers and cutter suction dredgers each offer distinct advantages depending on the type of material, site conditions, and production goals. Understanding how these two systems differ in operation, mobility, cost efficiency, and environmental impact helps contractors and engineers choose the vessel that delivers the highest performance while maintaining compliance and project sustainability.

What Is a Hopper Dredger?

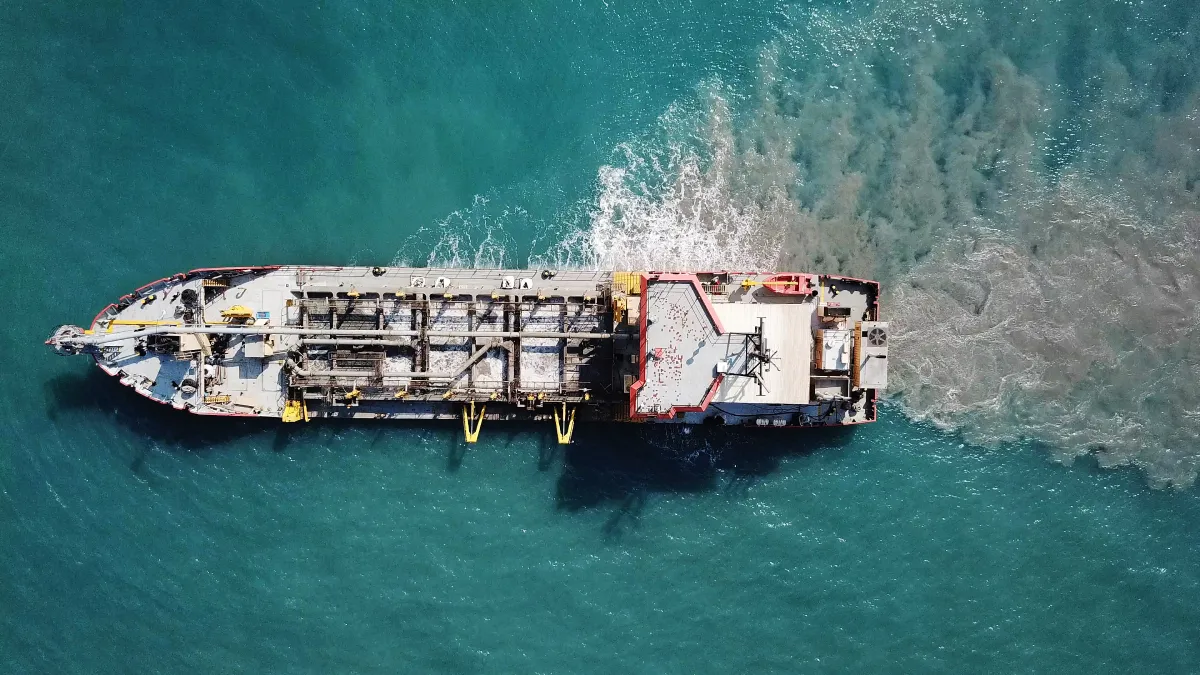

A hopper dredger is a self-propelled vessel designed to remove and transport large volumes of sediment, sand, and silt from the seabed or riverbed. It operates by using one or more suction pipes—known as drag arms—that extend from the sides of the vessel down to the dredging site. As the vessel moves forward, these drag arms loosen and vacuum the seabed material into the onboard hopper tank. The dredged material settles in the hopper while excess water is released through controlled overflow systems, maintaining optimal capacity and efficiency during the loading process.

The main components of a hopper dredger include dragheads and suction pipes for material intake, a large central hopper for storage, and discharge systems for material discharge. Many modern vessels are equipped with advanced sensors and automation systems to control dredging depth, monitor sediment levels, and improve operational precision in challenging marine environments.

Hopper dredgers are available in two key configurations: the trailing suction hopper dredger (TSHD) and the suction hopper dredger (SHD). The TSHD collects material as it sails along a dredge track, making it suitable for maintaining navigational channels or deepening harbors where continuous movement is required. The SHD, on the other hand, is often used in smaller or confined areas where precise dredging control is required.

These vessels are commonly chosen for projects such as navigational channel deepening, offshore sand mining, coastal nourishment, and harbor maintenance, where high capacity, mobility, and minimal setup time are critical to project success.

How a Hopper Dredger Operates

A hopper dredger operates through a repeating production cycle that balances speed, capacity, and placement accuracy. In a trailing suction hopper dredger, the vessel remains underway while collecting sediment, which shortens cycle time and keeps the pipeline free of stoppages as the work window changes with tide and traffic.

Step-by-step dredging cycle

1. Sail to the dredge track and pre-check systems for drag arm, pumps, and overflow.
2. Lower the trailing suction arm and position the drag head on the seabed
3. Start suction and adjust the vacuum, visor opening, and jet water to loosen material
4. Fill the hopper while monitoring density and volume through sensors and overflow control
5. Hoist drag arms and sail to the designated placement or reclamation area
6. Dispose of material by the selected method and log the load for production tracking
7. Return to the dredge track for the next cut while optimizing the route for fuel and time

How the trailing suction arm collects material

The arm carries the drag head, suction pipe, pumps, and instrumentation. As the vessel moves, the drag head skims the seabed, loosening sediment with jet water or teeth, then funnels the mixture into the suction pipe. Constant tension systems and swell compensation keep the drag head stable over uneven ground. Operators modulate ladder angle, arm depth, and pump RPM to maintain target density, reduce turbidity, and protect the seabed profile for the next pass in both trailing suction hopper dredger and suction hopper dredger operations.

Discharge methods

• Pump-out: Onboard pumps push the hopper load through a floating or submerged pipeline to a reclamation area. Best for beach nourishment and controlled placement.
• Bottom dumping: Large hopper doors open below the vessel to release the load quickly at a dump site. Suited to offshore disposal where speed matters.

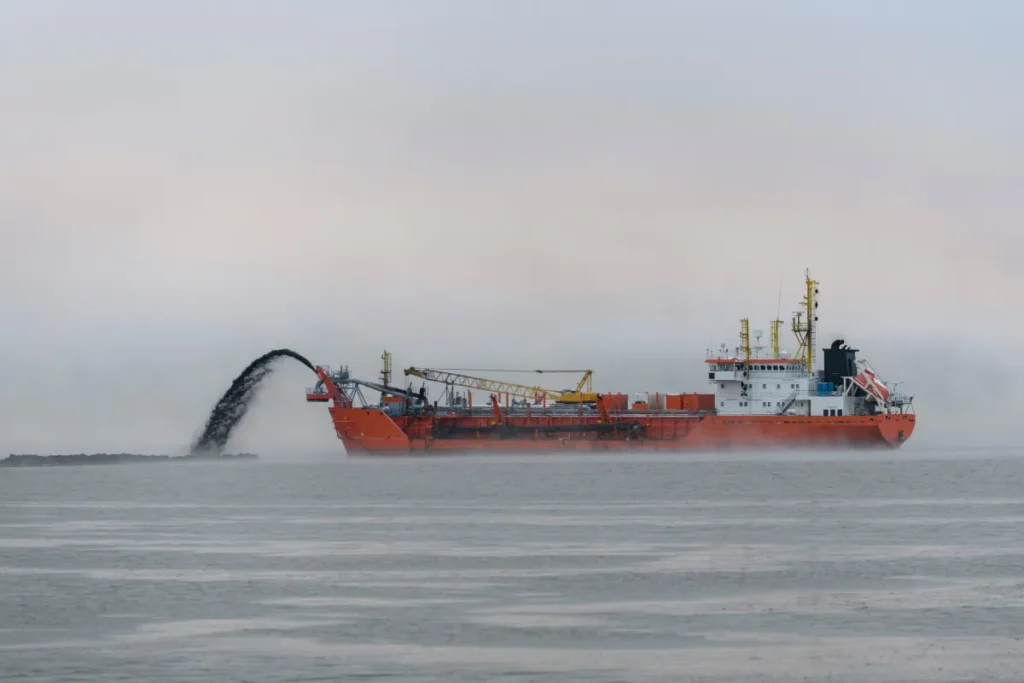

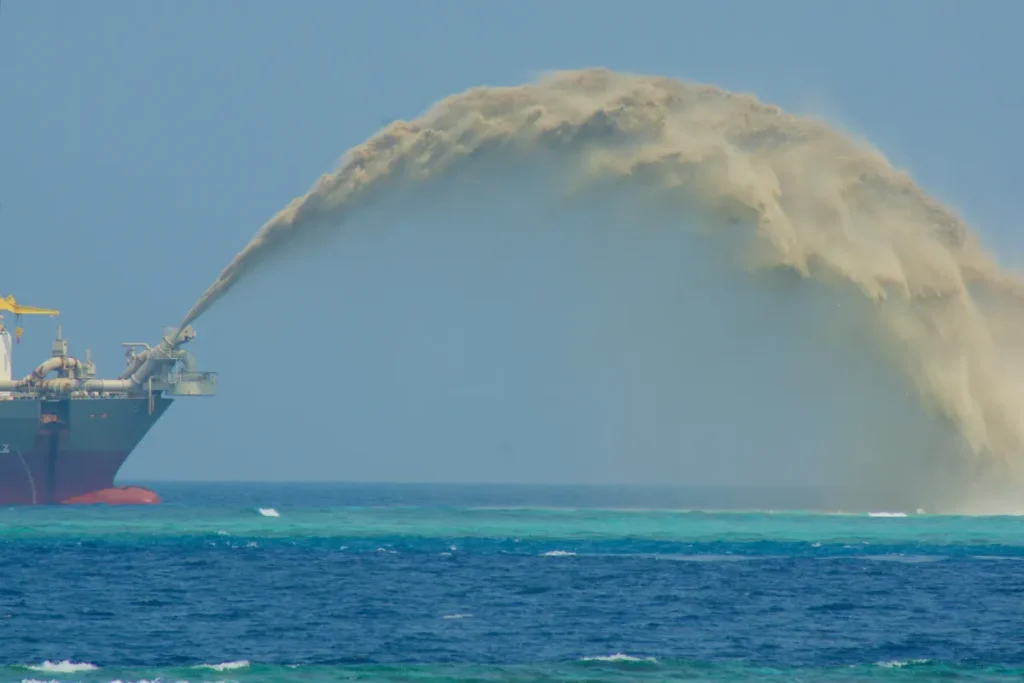

• Rainbowing: High-velocity pumps eject a sand-water jet in an arc onto a beach or fill zone. Useful for building profiles where access is limited.

Automation and positioning control in modern TSHDs

Modern systems combine RTK GNSS positioning, inertial sensors, and multibeam or single-beam echosounders to guide the hopper dredger along precise tracks. Real-time dashboards display drag head depth, suction vacuum, density, concentration, hopper volume, and overflow rates so crews can tune production in changing seabed conditions. Auto swell compensation stabilizes the arm in waves. Drag head pressure and inclinometer feedback protect equipment and help maintain design grades. Integrated voyage planning tools optimize sailing routes between borrow areas and placement sites, which support consistent loads, predictable cycle times, and compliance with environmental windows as project demands evolve.

What Is a Cutter Suction Dredger?

A cutter suction dredger is a stationary dredging system engineered to excavate compacted or cohesive seabed material and pump it directly to a discharge site through a pipeline. Rather than sailing through the dredge zone like a hopper dredger, a cutter suction dredger remains fixed in position using spuds and anchor systems, while the rotating cutter head breaks up soil and feeds it into the suction pipe. The dredged slurry is then pumped continuously to a reclamation or disposal area, enabling precise excavation and controlled sediment placement in confined or engineered environments.

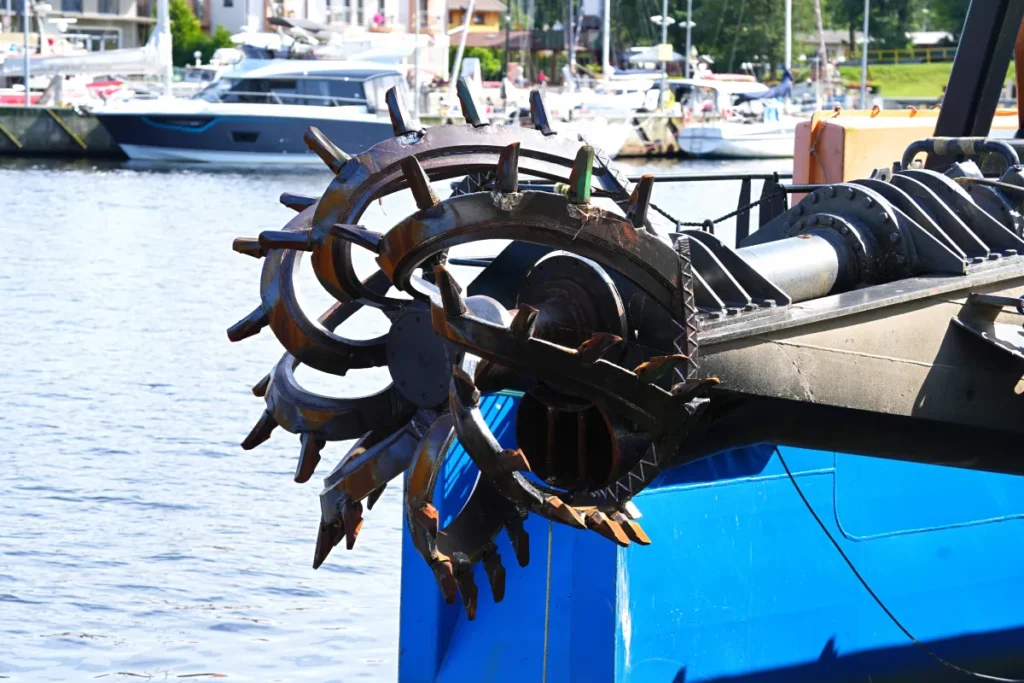

The structure of a cutter suction dredger centers on several core components that work in sequence. The cutter head sits at the end of a ladder and rotates to fragment dense or clay-rich material. The ladder supports the suction pipe and provides vertical reach to the seabed. A high-capacity dredge pump draws the loosened sediment through the suction pipe and pushes it into a floating or land-based discharge pipeline. Spuds at the stern anchor the dredger in place, while forward and side anchors enable incremental movement across the dredge footprint. Winches control swing motions, allowing the cutter head to sweep horizontally and maintain a uniform cut profile.

Operationally, a cutter suction dredger differs from a hopper dredger in its fixed operating posture and continuous pumping system. While a hopper dredger collects material in an onboard hopper and transports it to a disposal location, a cutter suction dredger excavates and transfers slurry in one uninterrupted process. This approach supports high productivity when fine control, deeper penetration into hard material, or long-distance hydraulic transport is required, making it well-suited for structured dredging programs rather than free-sailing sediment-removal cycles.

Typical deployment areas include inland waterways, land reclamation corridors, river deepening programs, port expansion zones, and capital dredging projects where precise channel geometry and stable cut faces are essential. Cutter suction dredgers are also used for pipeline trenching and large civil marine works, especially where dredged material is directly placed to form embankments, breakwaters, or reclaimed land platforms. This positioning makes them a primary choice for projects demanding continuous excavation, engineered sediment handling, and defined design tolerances across varied soil conditions.

How a Cutter Suction Dredger Works

A cutter suction dredger (CSD) operates as a stationary dredging unit anchored securely at the dredge site. The process begins with the dredger lowering its cutter head, which rotates at high torque to break up compacted or cohesive seabed materials such as clay, silt, or rock. The loosened sediment is then drawn into the suction pipe by powerful dredge pumps, creating a continuous slurry flow. This mixture is transported through a floating or submerged discharge pipeline to a designated reclamation or disposal area, often several kilometers away.

The entire dredging operation relies on precise coordination between the cutter head, ladder angle, and suction pump pressure. Spuds and side anchors stabilize the vessel, allowing it to pivot and reposition incrementally as the cut progresses. This method provides high accuracy and control, particularly in confined or shallow areas where mobility is limited.

Key performance variables influencing production include cutter power (to determine the type of material it can excavate), suction diameter (which affects slurry throughput), pipeline length (which impacts pressure loss and efficiency), and dredge depth (which dictates pump head requirements and overall output).

Cutter suction dredgers are best suited for projects requiring precise excavation in dense, compact, or clay-rich seabeds. They are commonly used for land reclamation, port and canal deepening, pipeline trenching, and maintenance dredging, where controlled material placement and high excavation accuracy are essential.

Technical Comparison: Hopper vs. Cutter Suction Dredger

Parameter	Hopper Dredger	Cutter Suction Dredger
Mobility and Propulsion	Self-propelled vessel capable of sailing between dredge and disposal sites independently	Stationary dredger anchored with spuds and side anchors; repositioned gradually using winches
Type of Material Handled	Best for loose, free-flowing sand, silt, and light sediment	Ideal for compact clay, gravel, or weak rock that requires mechanical cutting
Dredging Depth Range	Typically up to 60 meters, depending on the suction arm and vessel design	Generally up to 30 meters, though deeper cuts are possible with ladder extensions
Sediment Transport Method	Material stored in the onboard hopper and transported via sailing	Continuous pumping of dredged slurry through floating or submerged pipelines
Disposal Method	Bottom dumping, rainbowing, or pump-out to the reclamation area	Direct pipeline discharge to a designated fill or containment zone
Crew Size and Operational Complexity	Smaller crew; high automation and navigational control systems	Larger crew; manual coordination of anchors, spuds, and cutter ladder
Typical Project Environments	Offshore mining, harbor maintenance, channel deepening, coastal nourishment	Inland waterways, reclamation sites, port deepening, trenching, and precise excavation projects

The primary trade-off between the two dredger types lies in speed versus precision. Hopper dredgers offer high mobility and faster cycle times, making them efficient for large-scale maintenance or offshore projects where sediment is light and distances are long. Cutter suction dredgers, on the other hand, excel in accuracy and material control, particularly when working in compact or cohesive soils where mechanical cutting is essential. The choice between them depends on balancing project scale, soil conditions, and the required precision of excavation.

Operational Efficiency and Project Economics

Operational efficiency and overall project economics differ significantly between hopper and cutter suction dredgers, largely depending on project scope, sediment type, and site logistics. Hopper dredgers generally achieve higher productivity per cycle due to their self-propelled nature and onboard storage, allowing them to transport and dispose of material without additional equipment. Cutter suction dredgers, while slower in movement, deliver consistent output when operating continuously in confined zones, especially where direct pumping to reclamation areas is feasible.

From a cost perspective, the price per cubic meter dredged is influenced by dredge capacity, pumping distance, and soil resistance. Hopper dredgers incur higher capital and fuel costs but lower setup times, while cutter suction dredgers require longer mobilization but can handle denser material more effectively.

Fuel consumption tends to be higher for hopper dredgers during transit and disposal runs, whereas cutter suction dredgers consume more energy during cutting and slurry transport. Crew size also impacts daily operational costs—hopper dredgers typically run with fewer personnel supported by automation, while cutter dredgers depend on larger, more specialized crews. Maintenance frequency follows a similar trend: hopper dredgers focus on propulsion and hull systems, while cutter dredgers emphasize wear-prone cutter heads, pumps, and pipelines.

Mobilization time is another key factor: hopper dredgers can relocate quickly between sites, while cutter dredgers often need disassembly and reinstallation, especially for inland or shallow deployments. The distance to disposal sites also shapes cost efficiency—longer hauls favor hopper dredgers, while nearby reclamation zones make cutter suction dredgers more economical.

Project planners typically evaluate cost-to-performance ratios by considering:

• Dredged volume and soil composition relative to dredger capacity
• Average cycle time, including loading, transit, and disposal
• Fuel use per operational hour and expected production rate
• Crew and maintenance costs across the project duration
• Distance between borrow and disposal areas and method of material transport

These calculations help identify which dredger type offers the best balance of production rate, operational reliability, and total cost per cubic meter under specific site conditions.

How a Cutter Suction Dredger Works

Environmental and Regulatory Considerations

Environmental performance is a growing priority in dredging operations, and both hopper dredgers and cutter suction dredgers are subject to strict environmental and regulatory oversight. Each vessel type interacts differently with the marine ecosystem depending on how it excavates, transports, and disposes of sediment.

Hopper dredgers typically minimize turbidity through closed-loop loading systems that allow sediment-laden water to circulate within the hopper rather than being discharged directly into the water column. Overflow controls and automated density monitoring ensure the hopper fills efficiently while limiting the release of fine particles. This design makes trailing suction hopper dredgers especially suitable for projects near environmentally sensitive zones or navigation channels where water clarity and habitat preservation are crucial.

Cutter suction dredgers, by contrast, operate with open suction and discharge pipelines, which can increase the risk of suspended solids and localized turbidity if not carefully managed. Pipeline leaks or poor joint sealing may also release sediment into surrounding waters. To mitigate this, operators often install silt curtains, containment bunds, and adjustable cutter speeds to maintain sediment control during excavation.

Regulatory frameworks typically require detailed environmental permits that cover turbidity thresholds, noise levels, sediment quality, and approvals for disposal sites. Real-time monitoring systems and compliance logs are used to verify that dredging stays within allowable limits. Many projects also incorporate sediment containment strategies such as settling ponds, silt screens, or geotextile dewatering bags to prevent contaminated or fine sediments from spreading.

Modern dredgers are increasingly adopting eco-friendly technologies to meet sustainability goals. Examples include hybrid or low-emission propulsion systems, bio-based hydraulic fluids, electric-driven pumps, and advanced drag head designs that minimize seabed disturbance. Together, these innovations reduce carbon output, enhance fuel efficiency, and improve compliance with global maritime environmental standards while maintaining the high productivity demanded by modern dredging projects.

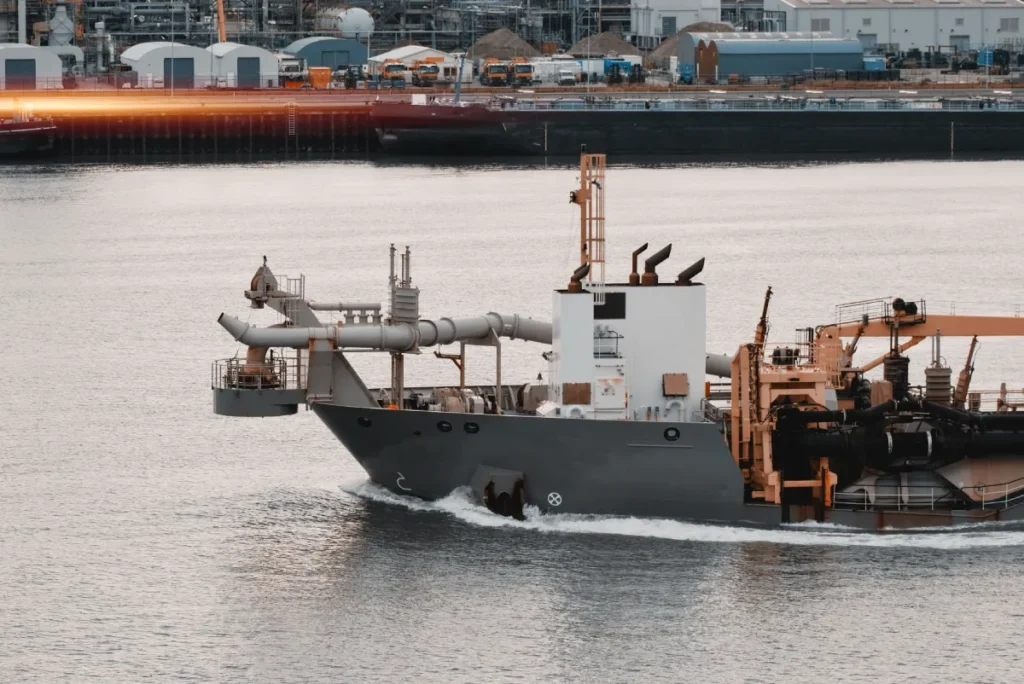

Choosing the Right Dredger for Your Project

Selecting the right dredger for a project requires balancing site conditions, production goals, and environmental limits. The decision between a hopper dredger and a cutter suction dredger depends largely on the type of material to be removed, how far it must be transported, and the working environment.

For loose, free-flowing materials such as sand or silt in deeper or open-water settings, a hopper dredger provides faster cycle times and flexible disposal options. In contrast, for dense, compact, or clay-rich seabeds where precise excavation is essential, a cutter suction dredger delivers superior control and continuous production.

Checklist for determining the best dredger fit:

• Sediment type and compactness:

• Loose and easily suspended → Hopper dredger
• Compact clay or gravel → Cutter suction dredger

• Water depth and site accessibility:

• Deepwater or offshore location → Hopper dredger
• Shallow, inland, or confined waterway → Cutter suction dredger

• Distance to disposal or reclamation area:

• Long haul distance requiring transport → Hopper dredger
• Short or direct discharge through a pipeline → Cutter suction dredger

• Project duration and mobility needs:

• Multiple dredge sites or short-term operations → Hopper dredger
• Stationary, long-term reclamation or deepening project → Cutter suction dredger

Contractors often use this decision path to evaluate which vessel delivers the most efficient cost-to-performance ratio under site-specific conditions, ensuring optimal productivity while maintaining environmental compliance and operational reliability.

Conclusion: Aligning Equipment Choice with Project Goals

Both hopper and cutter suction dredgers play essential roles in modern dredging operations, each designed to excel under specific conditions. Hopper dredgers provide unmatched mobility and speed for large-scale maintenance and offshore work, while cutter suction dredgers offer precision and control for dense or confined excavation zones. The ideal choice depends on factors such as soil composition, depth, distance to disposal areas, and overall project objectives. At Dredge Massachusetts, we help clients evaluate these parameters and select the most effective dredging solution for their operational needs. Contact us to discuss how our expertise can optimize your next dredging project.
